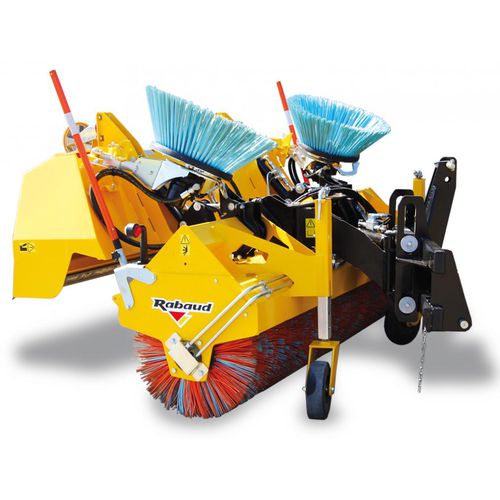

tractor sweeper / hydraulic
MULTINET series RABAUD

{{requestButtons}}

Characteristics

  • Configuration:

    tractor

  • Motor type:

    hydraulic

  • Working width:

    Min.: 2,100 mm

    Max.: 2,400 mm

Description

2 brush widths: 2.10m and 2.40m + side brush Ø 700mm right/left (option).

Many adaptations: on telescopic, backhoe loader, loader, tractor front 3-point linkage from 70hp up to 120hp, front loader.

"2in1" function: collecting the trash (when the box is closed) or lining up the trash on the right or on the left (when the box is lifted).

Hydraulic collecting box (option):
- Effective box volume: 350 and 400L depending on the model
- 2 control wheels Ø 200mm swiveling 360°
- Parallelogram for an automatic correction of the brush wear
- Shutter of pre-collection with composite anti-wear multi bands.

Angling (hydraulic in option) +/- 25° allowing to push away the trash on the rigth or on the left.
