inspection camera / visible / SWIR / Camera Link
NX1.7-VS-CL-640 Raptor Photonics

{{requestButtons}}

Characteristics

  • Function:

    inspection

  • Spectrum:

    visible, SWIR

  • Interface:

    Camera Link

  • Other characteristics:

    cooled, InGaAs

Description

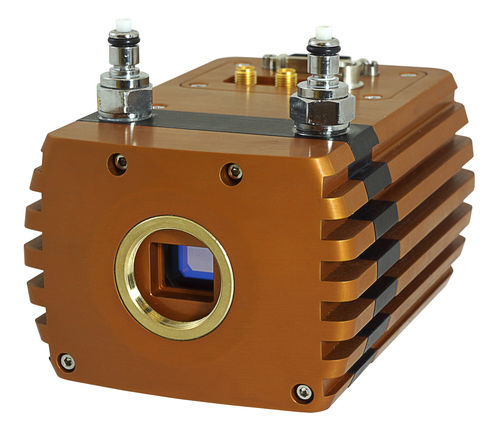

The Ninox-640 is a cooled, high sensitivity digital VIS-SWIR InGaAs camera. Using a 640 x 512 InGaAs sensor from SCD the Ninox 640 enables high sensitivity imaging from 0.4µm to 1.7µm. The 15µm x 15µm pixel pitch enables highest resolution VIS-SWIR image and with less than 50 electrons readout noise the OWL 640 enables the highest VIS-SWIR detection limit.

With TEC and liquid cooling to -20°C the Ninox 640 reduces dark current to ~1,500e/p/s, allowing longer exposures. Available with a 14 bit CameraLink output, the Ninox 640 will run from 10 to 120Hz enabling high speed digital video with intelligent auto AGC. This new feature On-board Automated Gain Control (AGC) will enable clear video in all light conditions.
The Ninox 640 also features an on-board intelligent 3 point NUC which will provide the highest quality images.

Cooled VIS-SWIR technology
15µm x 15µm pixel pitch - Enables highest resolution VIS-SWIR image
< 50 electrons readout noise in high gain - Enables highest VIS-SWIR detection limit
Cooled to -20°C - Enables low dark current for longer exposures
Ultra high intrascene dynamic range - 70dB. - Enables similtaneous capture of bright & dark portions of a scene
On-board Automated Gain Control (AGC) - Enables clear video in all light conditions
On-board intelligent 3 point NUC - Enables highest quality images

Applications include:
Astronomy
Beam profiling
Hand Held
Hyperspectral Imaging
Microscopy
Semiconductor Inspection
Solar Cell Inspection
Telecommunications
Thermography
