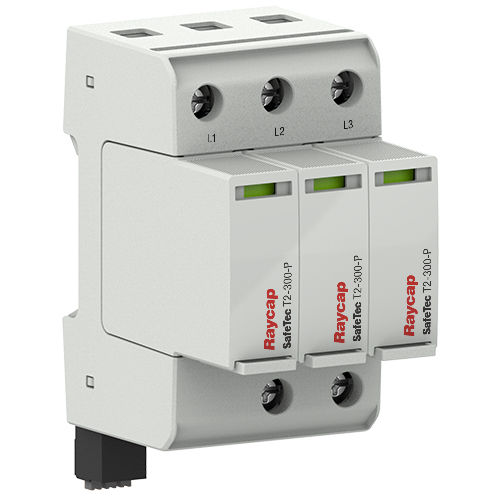

Type 2 surge protector SafeTec T2
class IItype 1CAfor electrical networks

type 2 surge protector
type 2 surge protector
type 2 surge protector
Add to favorites
Compare this product


Characteristics

Type
type 2, class II, type 1CA
Applications
for electrical networks
Other characteristics
varistor, gas discharge tube, modular, N-PE, DIN rail, plug-in, low-voltage
Voltage

Min.: 60 V

Max.: 880 V

Primary current

Min.: 20,000 A

20,000 A

Max.: 50,000 A

Description

• High temporary overvoltage (TOV) immunity • High maximum discharge current capacity (Imax) of 50 kA • State-of-the-art thermal disconnector • Continuous power to the equipment at end-of-life (EOL) • AC current up to 880 V • Back-up fuse up to 315 A gG • Short circuit current rating up to 50 kA • Vibration and shock withstand capability • All modules, including N-PE with operating state green-red • Optional remote contact (RC) signaling • VDE-IEC Class II / EN Type 2 certified • Worldwide patented thermal control (TC) technology • Five-year warranty Temporary overvoltages (TOV) are by far the most frequent cause of arrester failure by abnormal overvoltages of the power network (50/60 Hz) with significant duration and amplitude. The SafeTec product family is a reliable solution for all transient overvoltages. This multi-purpose single-pole arrester features the industry’s widest range and an unprecedented level of integration, enabling power systems to have improved surge protection, simplified designs, and lower overall costs. The patented thermal control (TC) technology function prolongs the lifespan of the SPDs, enables TOV immunity, and provides low protection level, all at the same dimensions as conventional protective devices. The universal features of SafeTec make the technology suitable for the protection of electrical devices not only against overvoltages caused by lightning strikes but also by switching operations that originate from the internal power system. In addition to the visual mechanical indicator, the optional remote contact (RC) features a three-pole remote signaling terminal enabling remote monitoring of the operating state of the device.
