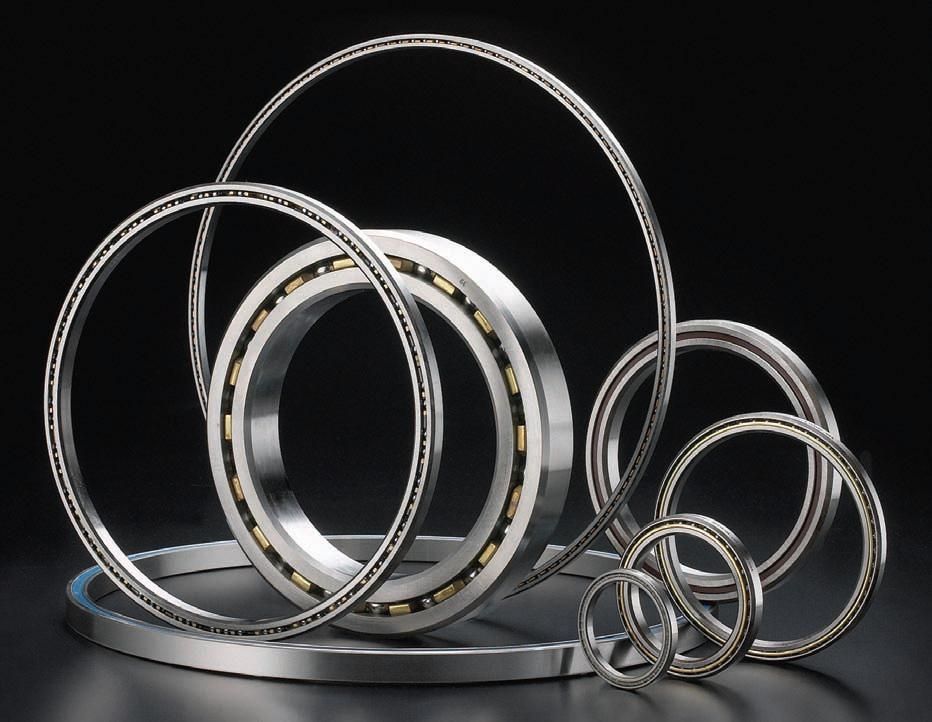

Thin section ball bearing
RBC Bearings
RBC Aerospace Bearings offers a full line of standard and many specialty and custom designed thin section ball bearings to the aerospace industry and all major OEMs. RBC's thin section ball bearings are offered in radial contact, angular contact, 4-point contact and sealed radial contact designs. These bearings are offered in ABEC 1 through ABEC7 precision grades, pre-loaded, corrosion protected, grease-lubricated, and are available with numerous separator, ball, shield, seal, and lubrication options. Standard thin section ball bearings have SAE 52100 steel rings and balls. RBC thin section ball bearings can be manufactured from other specialty bearing steels to provide corrosion resistance, high temperature capability, alternative load capacity, or chemical compatibility.
RBC has manufactured thin section ball bearings from SAE 440C stainless steel to provide corrosion resistance. As an alternative to CRES rings, the entire surface of the rings can be plated with nodular thin dense chrome (TDC). This plating, which meets AMS 2438, achieves a molecular bond that will not flake, peel, or separate from the base material. Special RBC thin section ball bearings have been manufactured from aluminum, 300 series stainless steel, 17-4PH and other metals. Some special ball materials include CRES 440C, 300 series stainless steel, silicon nitride, and M50 steel.
RBC supplies thin section ball bearings with many different lubricants depending on the application requirements.
RBC has manufactured thin section ball bearings from SAE 440C stainless steel to provide corrosion resistance. As an alternative to CRES rings, the entire surface of the rings can be plated with nodular thin dense chrome (TDC). This plating, which meets AMS 2438, achieves a molecular bond that will not flake, peel, or separate from the base material. Special RBC thin section ball bearings have been manufactured from aluminum, 300 series stainless steel, 17-4PH and other metals. Some special ball materials include CRES 440C, 300 series stainless steel, silicon nitride, and M50 steel.
RBC supplies thin section ball bearings with many different lubricants depending on the application requirements.
