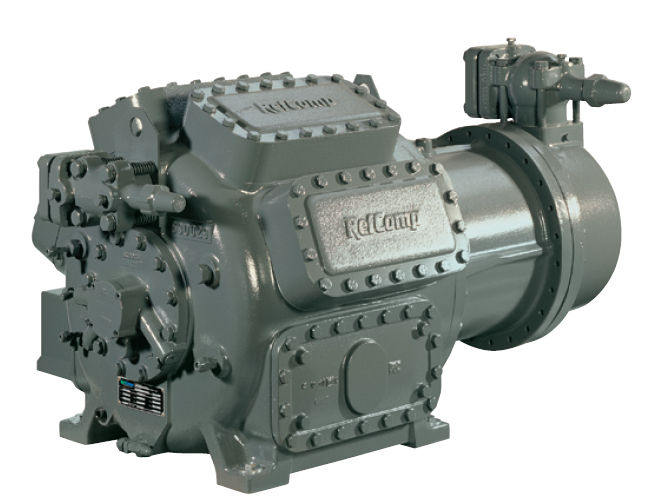

Semi-hermetic reciprocating refrigeration compressor
203 - 324.5 m³/h | SRC-F series
RefComp
Semi-hermetic reciprocating compressors
Air conditioning (AC) and medium evaporating temperature (MT) application. Marine application.
Replaceable cylinder sleeves, ring type suction and discharge valves.
Refrigerants: R22, R407C, R134a.
70¸110 HP
5, 6, 7 or 8 cylinders.
Oil charge.
High efficiency oil filter.
Forced lubrication.
Crankcase heater.
Wide range of accessories for lubrication monitoring available.
Hydraulic "pin lifting" capacity control; steps regulation.
Electronic motor protection device: temperature monitoring.
Liquid injection and/or additional blower to widen the application range.
Special motors with different power supply available.
