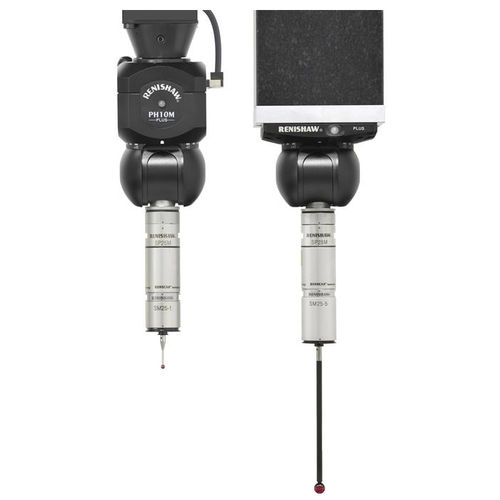

3D motorized head PH10 PLUS series

for touch probes

The range of PH10 PLUS motorised probe heads increases throughput by giving automated CMMs the added capability of program controlled probe reorientation. This enables the inspection of features at different angles without the need for frequent, time consuming stylus cluster changes. PH10 PLUS heads are compatible with a range of both contact and non-contact scanning sensors and touch-trigger probes, allowing the size and form of critical features to be determined. When used in conjunction with the PH10M PLUS or PH10MQ PLUS, Renishaw’s autochange systems provide fast, repeatable probe and extension bar exchange, without the need for re-qualification of the stylus tip, helping to maximise productivity. PH10T PLUS: A shank-mounted head with two-wired probe capability and an M8 thread. PH10M PLUS: A shank-mounted head with multiwired probe capability and a Renishaw autojoint. PH10MQ PLUS: A quill-mounted head with multiwired probe capability and a Renishaw autojoint. Key benefits •Accuracy: Repeatability specification is a market leading 0.4 μm at a 100 mm radius from the centre of rotation of the axis, providing accurate positioning even when using long extensions. •Increased throughput: The PH10’s ability to index automatically reduces the number of stylus changes required, thereby increasing the throughput of your CMM. Indexing is faster than stylus changing. •Increased reach and flexibility: Extension bars up to 450 mm long, together with the full range of Renishaw autojoint and M8 probes, can be used with the appropriate head types.
