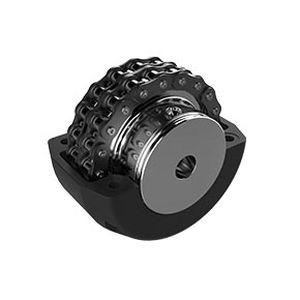

Flexible coupling / roller chain
Chainflex RENOLD

Characteristics

  • Type:

    flexible, roller chain

  • Torque:

    Min.: 52.5 Nm (38.72 ft.lb)

    Max.: 8595 Nm (6339.35 ft.lb)

  • Rotational speed:

    Min.: 700 rpm (4398.23 rad.min-1)

    Max.: 3500 rpm (21991.15 rad.min-1)

Description

An all-metal flexible yet torsionally stiff coupling suitable for use in arduous working conditions.

Coupling Capacity

* Maximum power @ 100RPM - 90kW
* Maximum torque - 8595Nm

Features & Benefits

* Torsionally stiff for use as a positive drive connection
* Easy installation for ease of maintenance
* Mis-alignment capabilities allowing flexibility in installation
* Hardened teeth giving long life with high torque capacity
* All-metal coupling for use in hostile environments
* Taper Bush bores available for ease of maintenance

Applications

* Fans
* Feeders
* Kiln Dryers
* Line Shafts
* Pump Drives

Standard Range Comprise

* Taper Bush or Parallel Bored

Construction Details

* Hardened Steel Sprockets
* Renold Duplex Chain
* Moulded Cover
