Magnetic drum separator
0.10 - 100 t/h | BSM
Research & Production Association «ERGA»

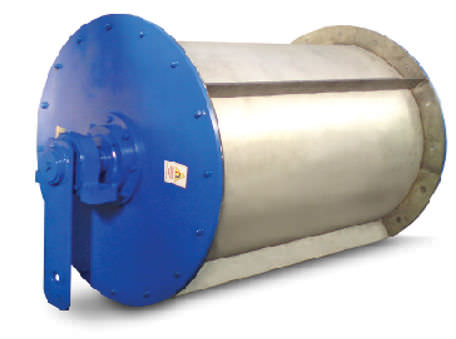

BSM magnetic drums are powerful, reliable and efficient separators, designed for extraction of both large and fine tramp iron from various products.
Main features:
- Magnetic drum separators meet all the requirements for efficient separation: powerful magnetic field, large effective surface area, even material feed and automatic self-cleaning design;
- Research & Production Association "ERGA" manufactures magnetic drum separators, designed for different throughput capacities (from 1 to 1000 t/h) and material types;
- Unique patented magnetic systems are composed of powerful Nd-Fe-B magnets (in-house industrial production). Magnets are thoroughly tested to ensure that the required properties are present, and to guarantee long equipment life and high performance;
- Depending on magnetic susceptibility of material and contaminants, maximum magnetic induction on the drum's surface is selected within the range of 100 to 900 mT (1000-9000 G), which equals magnetic field intensity of 80-720 kA/m (1000 -- 9000 Oe);
- Rubber or polyurethane coatings may be applied to magnetic drums to protect them against abrasive wear and tear;
All model BSM separators are custom-manufactured, please attach a completed questionnaire to quotation requests.
Main features:
- Magnetic drum separators meet all the requirements for efficient separation: powerful magnetic field, large effective surface area, even material feed and automatic self-cleaning design;
- Research & Production Association "ERGA" manufactures magnetic drum separators, designed for different throughput capacities (from 1 to 1000 t/h) and material types;
- Unique patented magnetic systems are composed of powerful Nd-Fe-B magnets (in-house industrial production). Magnets are thoroughly tested to ensure that the required properties are present, and to guarantee long equipment life and high performance;
- Depending on magnetic susceptibility of material and contaminants, maximum magnetic induction on the drum's surface is selected within the range of 100 to 900 mT (1000-9000 G), which equals magnetic field intensity of 80-720 kA/m (1000 -- 9000 Oe);
- Rubber or polyurethane coatings may be applied to magnetic drums to protect them against abrasive wear and tear;
All model BSM separators are custom-manufactured, please attach a completed questionnaire to quotation requests.
