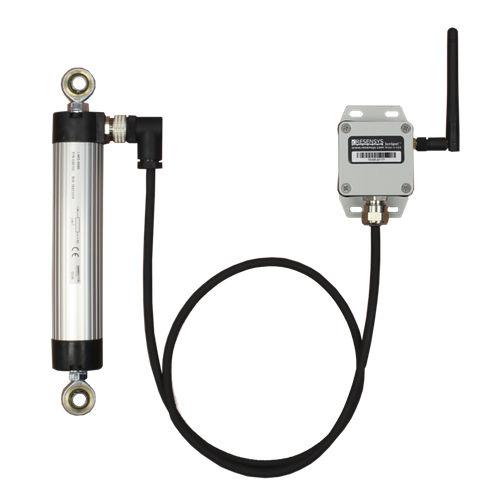

Linear displacement sensor SenSpot™

mechanicalresistancetransparent

SenSpot™ provides an easy to install, scalable solution for distributed structural integrity monitoring. Resensys SenSpot™ technology offers a high performance method for large-scale sensing, wireless synchronization, and ultra-energy efficient wireless communication. SenSpot™ is designed to operate maintenance-free for more than a decade. After installation, SenSpot™ does not need calibration, battery replacement, or any other maintenance during its entire service life. Due to small size and light weight, adhesive-mount SenSpot™ sensors can be applied easily to as many critical spots on a structure as needed, with minimal installation effort. SenSpot™ displacement meter can be used for measuring the progress of the existing cracks in a structure. This device has a sliding element which moves with displacement of structure or growth of a crack. Features •Long lifetime: (minimum expected life without battery replacement 10 years) •Lightweight： about 147 g (5.19 oz.) - Wireless transmitter: 120 g (4.23 oz.) - Cable (1ft): 10 g (0.35oz.) - Displacement sensing element: 100 g (3.5 oz.) •Easy mounting: - Self-adhesive, no drilling is required (e.g. steel) - Flange-mount, drilling is required (e.g. con-crete) (Sensing element's installation requires drilling) - Quick installation, 1-2 minutes •High accuracy: 0.1mm resolution •Long communication range: 1.0km free space •Small size: - Wireless transmitter: 50mm (1.96”) x 50mm (1.96”) x 34mm (1.34”) - Displacement Sensor: 79/104/129/154mm (1/2/3/4”) x 22mm (0.9”) x 22mm (0.9”) •Complementary sensing: temperature, battery voltage, etc
