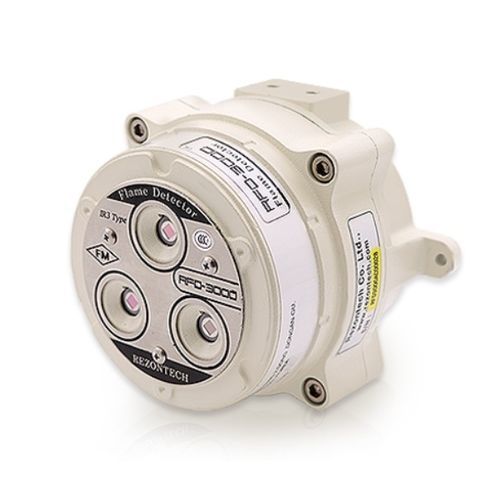

IR flame detector RFD-3000

4-20 mAwith relay outputRS-485

RFD-3000 is a Triple IR (IR3) Flame Detector with international certifications. Identify fire by analyzing the IR wavelengths of a long distance flame.  Maximum 60 meters of detection range with a 90 degree cone of vision.  User selectable output options among Relays, 4-20㎃ stepped output, and RS-485.  • Multispectrum IR sensors • Enhanced False Alarm Immunity against sunlight and artificial false alarm sources  • High reliability in operation with Automatic and Manual Self-Diagnosis  • Suitable for high area such as a terminal, warehouse, and shopping mall  • Field selectable sensitivity and delay time  • Type : Triple Infrared • Detection Range : 200ft(60m) for n-Heptane fire • Field of View : Horizontal 90°, Vertical 90° • Temperature Range Operating : -40℃ to +75℃ • Storage : -50℃ to +80℃ • Humidity Range : 0 to 95% relative humidity
