LED stroboscope / stationary

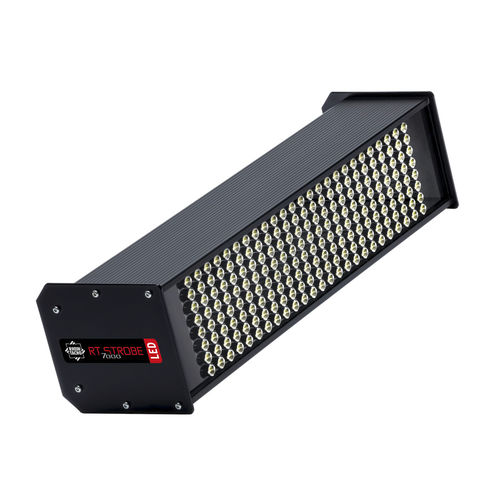

RT STROBE 7000 LED RHEINTACHO Messtechnik GmbH

{{requestButtons}}

Characteristics

  • Options:

    LED, stationary

Description

The RT Strobe 7000 LED from Rheintacho is a stationary LED-stroboscope with high light output and homogenous illumination for XXL-web widths. The illumination surface provides a constant results even in tough light environments. This device is ideal for measuremen, observation and inspection applications. It is ideal for demanding applications in the printing industry.

This device has range of flash duration ranging from 1–1000 µseconds. This enables the operator to find the adequate combinations of light intensity and sharpness for various applications. This device is controlled directly using the trigger signal. It removes the need of an additional RT Strob control units. It runs on a 24 VCD power supply. The frequency range of the device is 0..120,000 flashes per minute. The external trigger input is 3…30 V / max. 5 mA.
