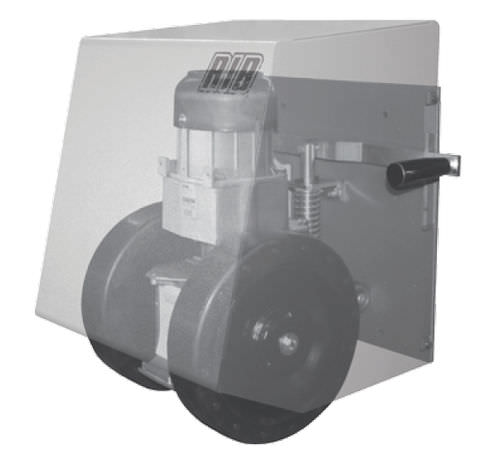

Door operator R50, T2-CRX

he R50 is designed to operate large doors or gates in applications in which standard actuators cannot be used. In the event of power failure, simply operate the outer lever, then open the door/gate manually. R TAKES ON THE HEAVY WEIGHTS R is a range of geared operator specially designed for installation on the end of the leaf on large swing gates. The range includes 2 models: the R50 and R60. The R60, the only one of its kind currently available on the market, can operate gate leaves weighing up to twelve tonnes. The heart of the R system is made of an indestructible power unit, enclosed by a casing featuring a neat and practical design. The unit contains an electric motor, speed reducer and rubber-coated drive wheels (1 wheel on R60 model). Each component is designed to guarantee maximum strength and functionality. The motor is ventilated and protected by thermal probe. All the mechanical components are oil-immersed to ensure maximum durability and the utmost reliability in all ambient conditions. A special adjustment system optimises ground adherence by adjusting the pressure between the wheel and floor. INSTALLATION Certain requirements must be met to allow the installation of the R50 and R60. The main door or gate structure must be solid and not prone to buckling. The floor must be solid and level within the operating radius of the door. Following installation, maintenance is minimal. The casing, the mechanical engineering of the various components and the special anti-corrosion treatment protect the automation from humidity, dust and rust.
