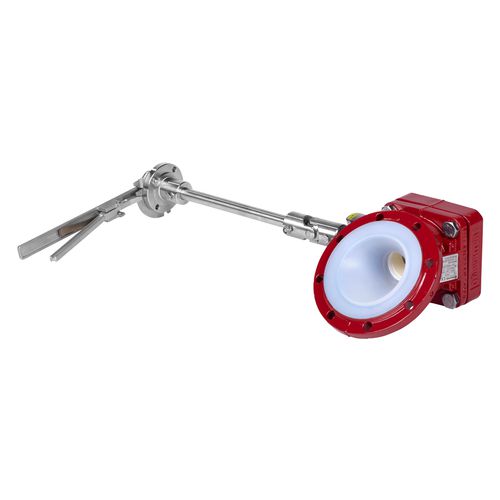

Tank bottom valve TEballmanualshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- shut-off
- Body
- flange, PFA-lined
- Applications
- tank bottom
- Other characteristics
- corrosion-resistant
- DN
80 mm
(3.15 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 180 °C
(356 °F)
Description
Features
•Increased safety
•Superior corrosion resistance
•Extended lifetime
•Lower operating costs
Specifications
•Design - ISO/DIN
•Nominal Pressure - 10 bar
•Lining - PFA
•Housing Material - EN-JS 1049
•Face-to-Face - 177 mm
•Flanges - DIN EN 1092-2, type B (ISO 7005-2 type B) PN 10 or flange drilled to ASME B16.5 Class 150
•Temperature Range - -40 °C to +180 °C (-40 °F to +360 °F)
•Certifications - DIN EN 14432, PED 2014/68/EU, German Clean Air Act (TA-Luft)
