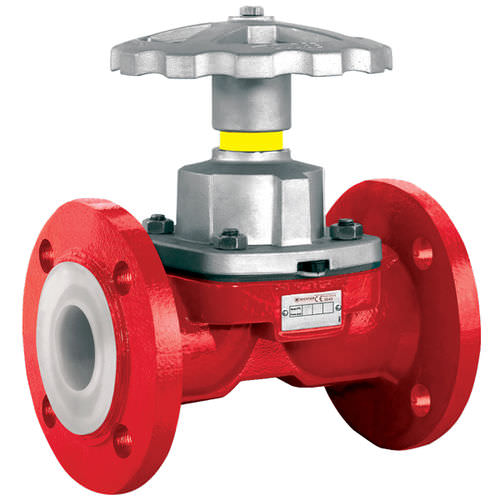

Diaphragm valve MV seriesmanualcontrolflange
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- manual
- Function
- control
- Body
- flange, PFA-lined, cast iron
- Other characteristics
- ISO, DIN, rising stem
- DN
Min.: 15 mm
(0.591 in)Max.: 200 mm
(7.874 in)- Pressure
7 bar, 10 bar, 16 bar
(101.5 psi, 145 psi, 232.1 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 150 °C
(302 °F)
Description
Features
•High reliability due to thick-walled PFA lining and diaphragms made of modified PTFE
•Reliable as "floating" connection diaphragm to stem
•Long service life: diaphragm made of modified PTFE
•Clean-room applications possible
Specifications
•Design - ISO/DIN
•Nominal Pressure - 16 bar / 10 bar / 7 bar
•Lining - PFA
•Housing Material - EN-JS 1049
•Face-to-Face - DIN EN 558-1 and ISO 5752 series 1
•Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
•Temperature Range - -30 °C to +150 °C (-22 °F to +300 °F)
•Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), SIL
