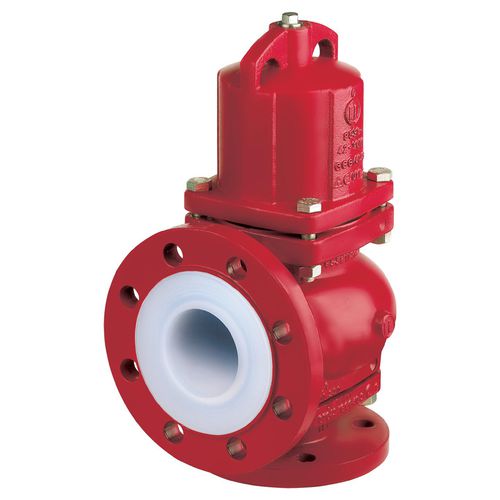

Gas safety valve LPV serieslow-pressureflangeangle seat
Add to favorites
Compare this product
Characteristics
- Fluid
- for gas
- Applications
- low-pressure
- Other characteristics
- flange, angle seat, in-line
- Controlled pressure
16 Pa
(0 psi)- DN
Max.: 150 mm
(5.906 in)Min.: 50 mm
(1.969 in)
Description
Features
•Safe venting or aeration of reactors and vessels
•Accurate response characteristic avoids compromise solutions, e.g. ball check valves
•Easily adaptable through removal or adding of the weight rings
•For very small set pressures of -120 to +120 mbar
Specifications
•Design - ISO/DIN
•Nominal Pressure - 16 bar
•Lining - PFA/PTFE
•Housing Material - EN-JS 1049
•Face-to-Face - DIN EN 558-1 and ISO 5752 series 1
•Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
•Temperature Range - -60 °C to +200 °C (-75 °F to +400 °F)
•Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), SIL
Catalogs
Low-pressure safety valves
4 Pages
