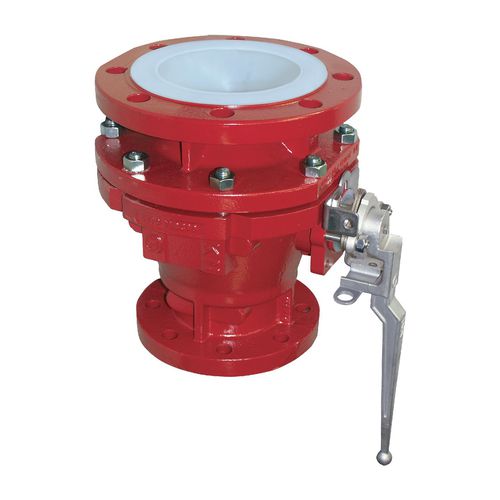

Tank bottom valve KA-N seriesballmanualpurge
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- purge
- Body
- flange, 1-piece, PFA-lined
- Applications
- tank bottom
- Other characteristics
- ISO, DIN
- DN
Min.: 25 mm
(0.984 in)Max.: 150 mm
(5.906 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 200 °C
(392 °F)
Description
Features
•Cost-effective alternative to bottom drain valves
•Maximum reliability: one piece ball/stem unit avoids weak spot ball to stem
•Universally applicable: many options in combination with a thick-walled PFA lining
•Reliable even in extreme conditions: ENVIPACK stuffing box sealing
Specifications
•Design - DIN/ISO ANSI/ISA-75.08.01
•Nominal Pressure - 16 bar
•Lining - PFA
•Housing Material - EN-JS 1049 / ASTM A395
•Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
•Temperature Range - -60 °C to +200 °C (-75 °F to +400 °F)
•Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft)
