on-line UPS / double-conversion / single-phase / industrial

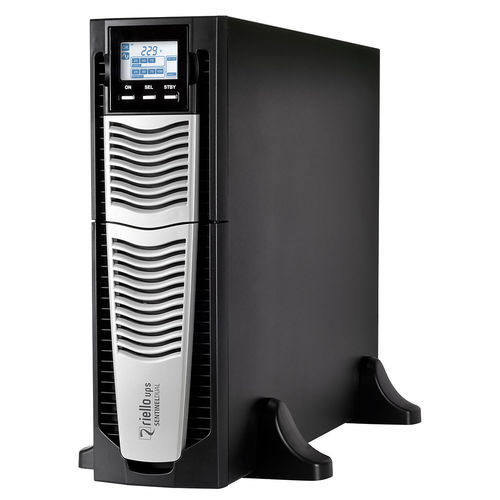

Sentinel Dual SDU Series
industrial, network, data center, for telecom applications, server, medical, for emergency lighting
redundant, Eco mode, with sinusoidal output, with built-in battery, rack-mount
5 - 10 kVA
100 - 250 Vac
200 - 500 Vac
5,000 W, 6,000 W, 8,000 W, 10,000 W
220 V, 230 V, 240 V
Output power kVA:
5 kVA, 6 kVA, 8 kVA, 10 kVA (6.8 hp)
• Power factor 1 kW = kVA
• Parallelable up to 3 unit
• Simplified installation
• Operating mode selection
• High quality output voltage
• High battery reliability
Sentinel Dual is the best solution for powering mission critical applications and electro-medical devices requiring maximum power reliability.
Flexibility of installation and use (digital display, user-replaceable battery set), as well as the many communication options available, makes the Sentinel Dual suitable for many different applications from IT to security.
Up to 3 Sentinel Duals can be operated in parallel in either capacity or N+1 redundant configuration offering increased reliability for critical system. The Sentinel Dual can be installed as Tower (floor standing) or Rack, ideal for network and server rack applications.
The Sentinel Dual range is available in 5-6-8-10 kVA/kW models with on-line double conversion technology (VFI): the load is powered continuously by the inverter which supplies a sinusoidal voltage, filtered and stabilised in terms of voltage, form and frequency. In addition, the input and output filters significantly increase the load’s immunity to mains disturbances and lightning strikes.
Technology and performance: selectable Economy Mode and Smart Active Mode functions.
Diagnostics: Standard digital display, RS232 and USB interfaces with PowerShield3 software downloadable, communications slot for connectivity accessories.
