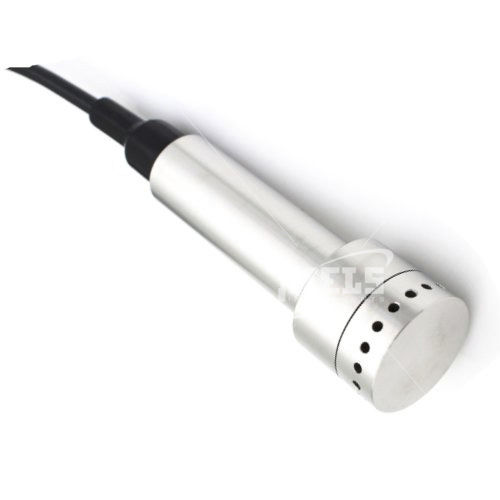

Hydrostatic level transmitter RIL160 series
for waterfor high-viscosity liquidsfor sludge

hydrostatic level transmitter
hydrostatic level transmitter
Add to favorites
Compare this product


Characteristics

Technology
hydrostatic
Medium
for water, for high-viscosity liquids, for sludge
Interface
digital output, RS-485, analog, 4-20 mA, 2-wire
Applications
for storage tanks, for sumps, for silos, fuel tank, for atmospheric vessels
Other characteristics
stainless steel, submersible, flush diaphragm, IP68
Level range

Max.: 10 m
(32'09" )

Min.: 0 m
(0'00" )

Process pressure

0.1 bar
(1.45 psi)

Process temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

Specifically designed for wide use in the field of dirty water and waste water lifting stations. The RIL160 Level Transmitter uses proven piezoresistive measurement technology in combination with Riels Instruments' most advanced microprocessor signal conditioning circuits, in order to offer maximum precision and reliability over a wide compensated temperature range. It is perfectly suitable for pump control applications that require Level Transmitters with standard 2-wire (4 ÷ 20 mA) or 3-wire (0 ÷ 10 V) output. In normal configuration, the RIL160 is held in suspension within the liquid to be measured, by a standard cable with PUR sheath (PE, PTFE on request), which is self-supporting and is equipped with vent holes. Upon request, Riels Instruments' enhanced lightning protection makes this transmitter ideal for installations in areas prone to chronic damage due to lightning-induced voltage transients. Benefits Design of the membrane in anti-clogging function Housing shell resistant to the aggression of chemical agents (AISI 316) Reliability in lightning-prone applications PRODUCT FEATURES Detection type - Continuous measurement Documentation included - English instructions manual, Italian instructions manual Explosion protection - Safe zone Version - A: suitable for liquids with large particles Mounting - From the top Measurement site - Channel, Sink, Tank Measurement type - With contact Properties of the fluid - Presence of suspended solids DETAILS OF THE SIGNAL INPUTS AND OUTPUTS load resistance - <(Vs-12)/0.02A REGISTRY FEATURES Display - No ELECTRICAL DATA Voltage type - 24 Vdc Recovery battery - Not available Type of electrical connection - Cable
