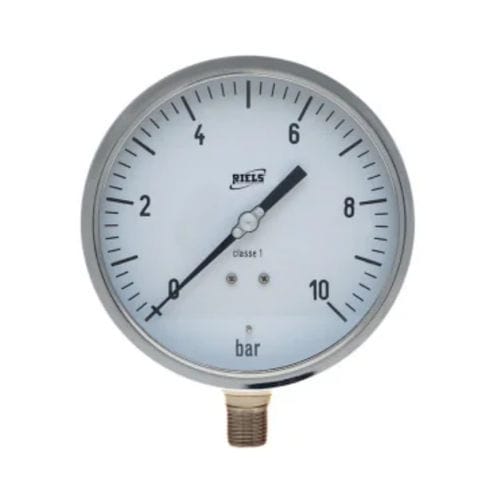

Dial pressure gauge RIB800 series

threadedaluminumstainless steel

Riels RIB800 pressure gauges, made entirely of stainless steel, are particularly resistant to severe operating and environmental conditions. They are used in the chemical and petrochemical, canning, food and pharmaceutical industries. Standard pressure gauges have a Bourdon tube as a sensitive element. The pressure of the fluids causes a deviation of the tubular spring which is transmitted to the movement and subsequently to an index on the dial. On request, the pressure gauges can be filled with liquid to reduce the stresses caused by system vibrations, pulsating pressure or water hammer. All models can be built with fluid separator for dense or dirty fluids, electrical and inductive contacts, draggable minimum or maximum temperature indices, degreasing for use with oxygen. PRODUCT FEATURES Principle of measurement - Molla Bourdon Informations measured - Pressure Detection type - Continuous measurement Explosion protection - Safe zone Pressure type - Relative Measurement type - With contact Analog scale - Black anodized aluminum, resettable micrometric Properties of the fluid - Aggressive Pressure range MECHANICAL DATA Diameter process connection - 3/8" - DN10 Welding - TIG ARGON ARC Clock face - Alluminio bianco con serigrafi a colore nero (EN 837-1) Dial glass seal - EPDM Filling - No filling Mounting - Radial attachment OMOLOGAZIONI Laws and regulations - EN 831-1 CE omologation - Yes LOGISTICS Type of packaging - Carton BOX Contains batteries - No ETCN - N/D country of origin - Italy Customs Code - 90262040 Packaging volume - 0,007 m³ Packing length - 26 cm Packaging width - 21 cm Packaging depth - 13 cm
