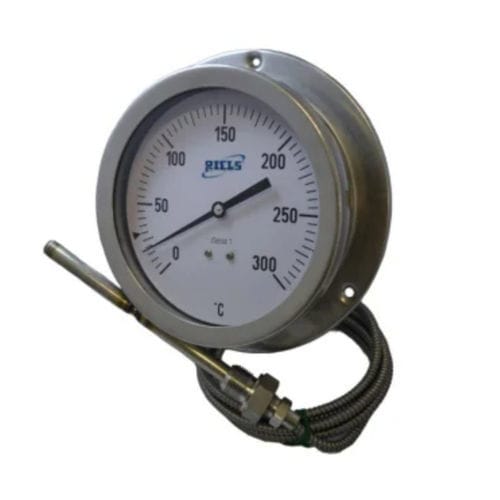

Gas expansion with capillary thermometer RIC250

dialATEXflange

The RIC250 Series Inert Gas (Nitrogen) Thermometers are accurate and offer a fast response time. Instruments that lend themselves, given the absence of mercury, to be used above all in the food and pharmaceutical industries. On request with mobile electric contacts to open or close electric circuits that can be positioned on the 270°C of the scale. These thermometers can be combined with thermowells to offer protection to the instrument or to replace it without having to interrupt the process. Possibility of ATEX execution with CE Ex II 2 GD c TX dial marking. They cannot be installed in zones 0 and 20. DETAILS OF THE SIGNAL INPUTS AND OUTPUTS All signal outputs available - N/A Signal Output Type - None REGISTRY FEATURES Display - No PERFORMANCE DATA Resolution - depending on the scale selected Accuracy - 1% Full scale (EN 13190) Reference precision (total error) - 1% Full scale (EN 13190) OMOLOGAZIONI Naval approvals - None Food / pharmaceutical approvals - None Laws and regulations - EN13190 Atex details - conformità alla direttiva ATEX 94/9/CE LOGISTICS Type of packaging - Carton BOX Contains batteries - No ETCN - N/D country of origin - Italy Gross weight - 0,8 kg Net weight - 0,4 kg Packaging volume - 0,007 m³ Packing length - 26 cm Packaging width - 21 cm Packaging depth - 13 cm
