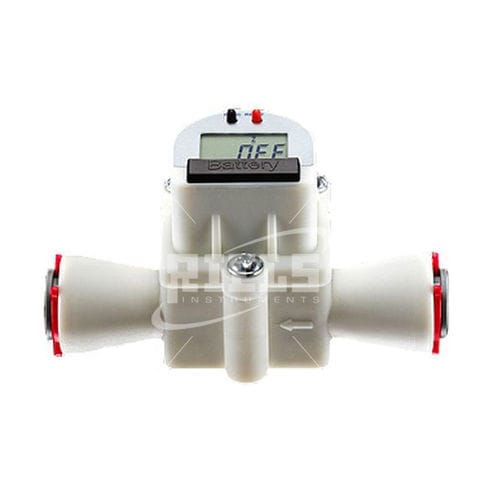

Turbine flow meter 938-15XX/X2X

for watercompactwith display

The 938-15xx/x2x flowmeter is available with the compact display or separate with a cable. The display has no outputs to connect to remote devices and is battery powered. Flow rates vary with internal diameter: ø 1.0 mm - 0,04...0,56 lt/min ø 1.2 mm - 0,05...0,82 lt/min ø 2.0 mm - 0,09...2,40 lt/min ø 2.5 mm - 0,15...3,74 lt/min ø 3.0 mm - 0,10...5,63 lt/min ø 4.0 mm - 0,12...8,38 lt/min ø 5.6 mm - 0,31...9,26 lt/min The PBT body provides resistance up to 60°C, and the impeller housing shaft made of ceramic material ensures durability and reliability of the instrument over time. PRODUCT FEATURES Principle of measurement - Turbine Informations measured - Volumetric flow, Volume Detection type - Continuous measurement Measurable media - Beer, Coffee, Water., Water, distilled, Food Liquids, Aggressive Liquids, Alkalis liquids, Acid liquids, Basic liquids, Demi water, (the indications on liquids are indicative and vary with the configuration of the product) Documentation included - English instructions manual Explosion protection - Safe zone Properties of the fluid - Non-conductive (µS / cm <20) Installation position - Horizontal Flow direction - Unidirectional DETAILS OF THE SIGNAL INPUTS AND OUTPUTS All signal outputs available - Nessuna Signal Output Type - None Pulse factor - 4126 imp/L Output details - None REGISTRY FEATURES Display - Yes Display version - Compact version Touchscreen - No Display features - The display shows the direct volume, reverse volume and instantaneous flow rate expressed in L/min. The meter's internal memory allows it to store the last 5 measurements taken and to store one measurement after which an audible alarm will be sounded.
