piston flow switch / for liquids / with indicator / process

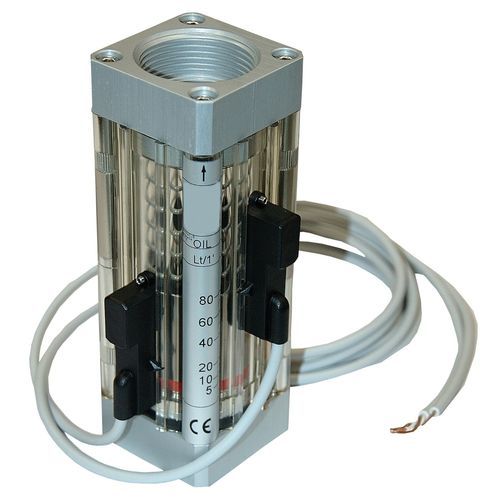

RIV600 Flussostato a Pistone Riels Instruments

{{requestButtons}}

Characteristics

  • Technology:

    piston

  • Fluid:

    for liquids

  • Other characteristics:

    with indicator

  • Applications:

    process, for lubrication systems

Description

Measuring principle piston
Range from 0.1 up to 100 l/min depending on the diameter
Output signal 1 Microswitch SPDT - SPST
Process connection 1/4" to 1" ½" Gas
Temperature up to 80°C
Pressure up to 30 bar

The Flow Switch RIV600 have high visibility on each side and a clear reading of the scale.
Thanks to the conformation of the cone, at regular increases of flowrate match movements equally regular of the shutter (linear progression).

RIV600 series can be equipped od one or 2 alarm sensors at reed contact, possibly supplemented by red LED (green on demand) for a signaling field of the presence or absence of the flowrate predetermined.

Features

Threaded connection head: anodized aluminum.
Threads available(F): from ¼” to 1”1/2 bsp
Body material: Grilamid™ TR55 (PA Transparent) high resistance suitable for fluids as water, oil, but also diluents, trichlorethylene.
O-Ring: NBR (Standard); on demand for appropriate quantities available other elastomers
Electric Sensors: SPST, SPDT
