Water analyzer TG-DTA/HUM

moisturebenchtopcompact

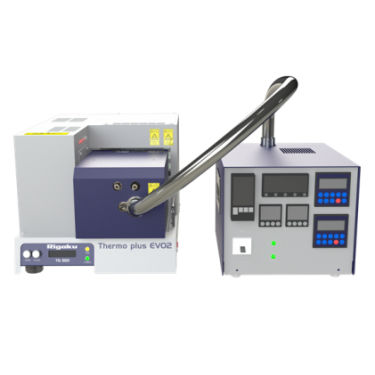

The compact humidity generator is connected to the TG-DTA for measurements under water vapor atmosphere with a constant relative humidity. Equipped with a polymer type humidity sensor and high precision temperature sensor, its response to various water vapor concentrations is quick and stability for longer measurement is realized. It enables the user to perform heating under a constant relative humidity. For standard furnace, it can measure from dry to 90%RH at ambient temperature; and from dry to 90%RH using the specialized furnace at ambient to 60°C through the circulator temperature control. Humidity is known to have a significant influence on the stability of many materials. In many industrial applications ambient temperatures and humidity have a major impact on the quality of products and processes. Defective installations or production facilities, such as switchboards, electronically controlled machines and drives, damaged electrical equipment or electrical interference can cause damages, interruptions and quality losses that result in financial and/or material losses.
