slurry filter press / for laboratories
LFP-1C RIGCHINA GROUP COMPANY

{{requestButtons}}

Characteristics

  • Other characteristics:

    for slurry, for laboratories

Description

API Low Pressure, Low Temperature (LPLT) Filter Presses are the most effective means of determining the filtration properties of drilling muds and cement slurries.

Measuring filtration behavior and wall-cake building characteristics of a mud is essential to drilling fluid control and treatment. The characteristics of the filtrate, such as oil, water or emulsion content, are also fundamentally important. The types and quantities of solids in the fluid and their physical and chemical interactions affect these characteristics. Temperature and pressure in turn affect the physical and chemical interactions. It is therefore necessary to run tests at both low-pressure/low-temperature and high-pressure/high-temperature. Each of these testing conditions requires different equipment and techniques

Working pressure is 100 psig and the filtering area is 7.1-in2, as specified in the American Petroleum Institute, API Recommended Practice 13B-1 and 13B-2.

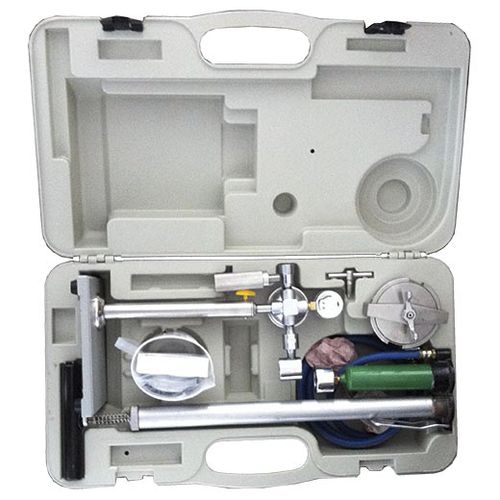

Filter Press W/Case, Hand Pump pressure assembly
Working pressure is 100 psig(0.7mPA)
the filtering area is 7.1-in2(45.8cm2)
240ml Sample Cell
