automatic filter press / for slurry / for laboratories / HTHP
HFP-71 RIGCHINA GROUP COMPANY

{{requestButtons}}

Characteristics

  • Operating mode:

    automatic

  • Other characteristics:

    for slurry, for laboratories, HTHP

Description

Characteristics

Characteristics

Type: Types of filtration: Designed for: Operational modes:
dynamic fine for slurries automatic

Other characteristics: Manufacturers:
high-pressure& for laboratories& high-temperature RIGCHINA GROUP COMPANY

Description

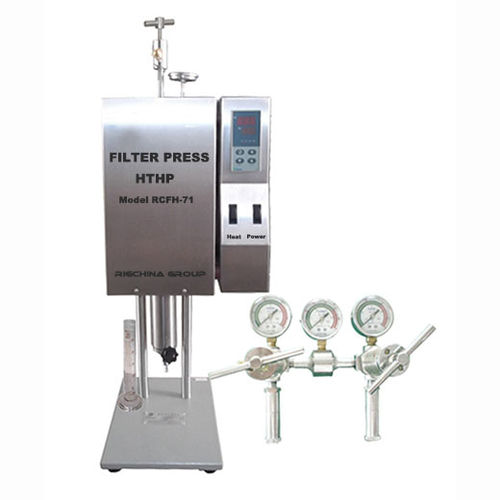

The HTHP (High Temperature, High Pressure) Filter Press is designed for testing drilling fluids under elevated temperatures and pressures. The unit simulates various downhole conditions and provides a reliable method for determining the effectiveness of the material being tested.

Specification:
1,The digital system is accurate and controllable.
2,Maximum Temperature : 500℉ (260℃)
3,Maximum Pressure Cell : 1800 psig (12.4 MPa)
4,Maximum Backpressure : 750 psig (5.17 MPa)
5,Sample Cell Volume : 500 ml
6,Receiver Volume : 100 ml
7,Filtering Area : 3.5 in2 (22.58 cm2)
8,Pressure Connection : Nitrogen or Carbon Dioxide
9,Heating Capacity :800 Watts
10,Power Requirement : 115/230 VAC, Frequency 50/60 Hz
