The Slurry Test Kit Model RC-823 is a portable kit with materials and equipment for measuring slurry properties. With this kit, the user can obtain laboratory-quality measurements of Marsh funnel viscosity, specific gravity or density, pH,water hardness, and sand content. Due to its design, this kit can be custom tailored to meet specific requirements.
These tests comply with API Recommended Practice for Field Testing Water Based Drilling Fluids, API RP 13B-1.
Users can make rapid, onsite measurements in the lab, field, or on the drilling rig.

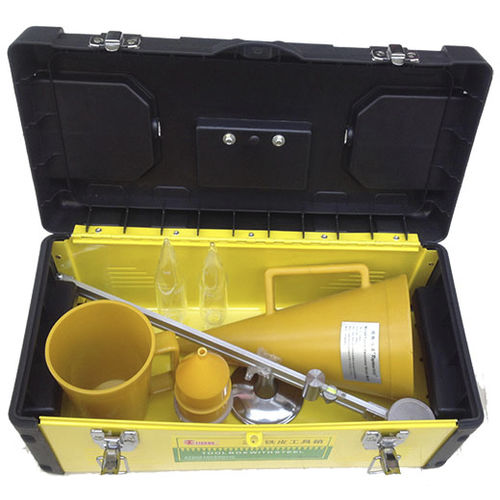

All testing instruments are contained in a customized high-impact plastic carrying case. The case is durable, compact, and provides convenient storage.
Rig Lab Model RC-823 Components:
Marsh Funnel Viscometer
Measuring Cup, 1000 ml
Mud Balance, metal, 0.7-2.9 g/cm3/( 5.8-24.2 1b/gal )
Funnel, Sand Content
Sieve, 200 Mesh
Glass Measuring Tube
Water Hardness Test Strips
Wash Bottle, 500ml
Stopwatch, digital
Wide range pHydrion pH Dispense, pH 1-14
