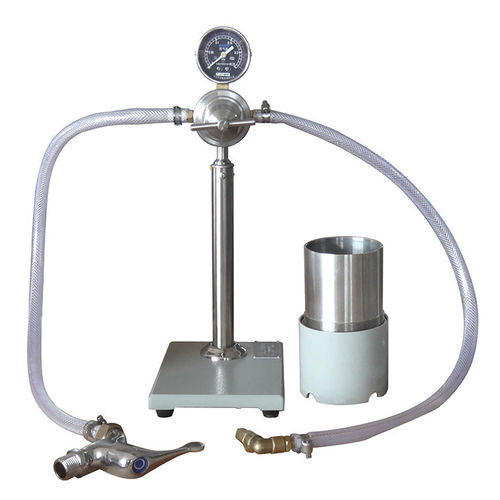

Sieve test kit PSA-635

wet

The Particle Size Kit contains all of the equipment necessary to perform particle size analysis as specified in API Specification 13A. The major solids component of a drilling fluid is often the weight material Barite. The American Petroleum Institute outlines several test procedures that help assure the quality of this important ingredient. Among these is the wet screen procedure for particle size analysis. The kit is furnished complete with the Standard screens of 200 and 325-mesh, screen holder, and spray wash assembly. The flow pressure regulator is rated for 125 to 200 psig inlet pressure. The outlet pressure is adjustable from 0 to 30 psig The spray system includes a pressure monitoring gauge (0 to 30 PSI), one 24" water hose, and an adapter plug for easy connection to a water supply. The complete system contains all the components required for a connection to a water source. The spray nozzle has a number TG 6.5 tip with a 1/4 TT body and is attached to the hose with a 1/4 FNPT stainless steel 90 degree elbow.
