RIGCHINA’s gauges provide quick, accurate readings of your rigs.

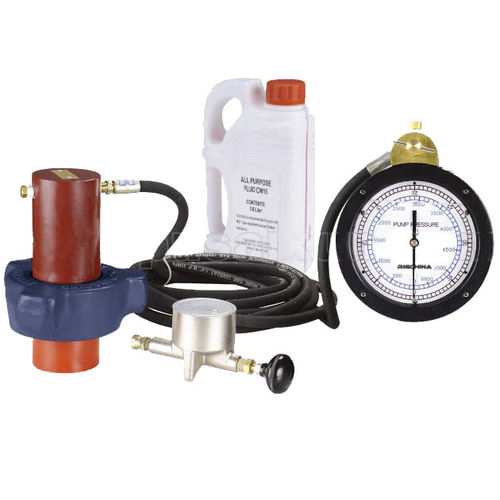

E-17 DIAPHRAGM PROTECTOR
Protects measuring or recording device from working fluid while transmitting no-lag, linear pressure signal.
Rugged workhorse sensor found in every corner of the world doing every conceivable pressure sensing job.
Robust, time proven design allows easy field repair and maintenance.
Available in flanged, threaded, and weld on female sub configurations.
Certified models available E-17 Diaphragm Protector.
Standard Capacities include:
3,000, 5,000, 6,000, 10,000, and 15,000 psi
210, 350, 420, 700, and 1,000 kg/cm 2
10K, 21K, 42K, 70K, 80K
21, 35, 42, 70, 100 MPa
Benefits
Easy to mount in a variety of locations: in a weight-indicator box, in the driller’s console, or on the mud pump.
Full 360° dial calibration accurately indicates small pressure changes.
Fluid-filled gauge protects readings from truck or rig vibration.
Large, easy-to-read 6-inch, fluid-filled dial face.
Operator-adjustable high-pressure damper ensures accurate readings.
To Order, Specify:
§ Application
§ Required capacity
§ Gauge mounting designs
§ English or Metric divisions
§ Diaphragm protector, 1:1 piston isolator or 4:1 debooster
§ Hose length
