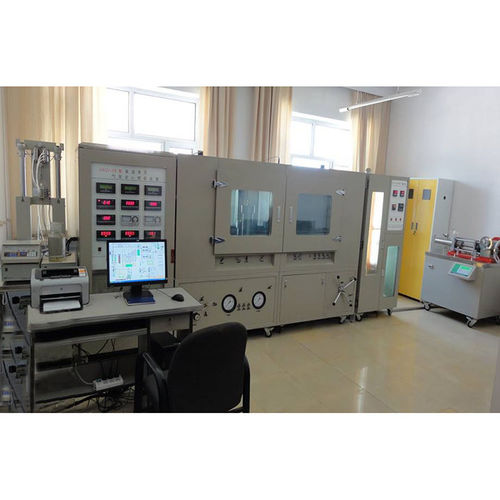

It is a automated, modular Core Flooding system that is configured for unsteady-state relative permeability tests. Core Flooding experiments in single and multi phase displacements are available in manual and automatic mode, addition of the gas delivery system allow performance of gas displacement experiments. In addition to relative permeability experiments the system is capable of performing a range of reservoir quality assessment experiments including: critical velocity, brine sensitivity, return permeability and acid sensitivity. This system is specifically configured to take advantage of Core Laboratories many years of performing waterflooding and simulation experiments.
FEATURES:
Automated state of the art system
Unsteady state relative permeability tests
Enhanced oil recovery tests
Formation damage and remediation tests
Forward and reverse flow capabilities
Two pressure taps are standard
Pulsation-free pumping system
Automatic confining pressure controller
Automated Digital Back Pressure Regulator
SPECIFICATIONS:
Maximum confining pressure: 10,000 psi (70MPa)- Higher pressures available
Maximum pore pressure: 6,000 psi (50MPa)- higher pressures available with different pumps
Maximum operating temperature: 360 °F (180 °C) - Higher temperatures available
Routine Core length: 25mm (1") to 150mm (6") standard (other lengths available upon request)
Pressure tap spacing: 50.4mm (2.0") unless otherwise specified
Routine Core diameter: 25mm (1.0)" and 38mm (1.5") (optionally 30 mm)
Special Core:45 X 45 X 300 mm (Square)-- optionally
Flow rate range: 0.001 to 15 cc/min (other flow rates available)
