shaft sleeve coupling shaft sleeve coupling - RLK 404 series
{{requestButtons}}

Characteristics

  • Installation system:

    shaft sleeve

  • Torque:

    Max.: 1,206,000 Nm (889,499.952 ft.lb)

    Min.: 7,000 Nm (5,162.935 ft.lb)

Description

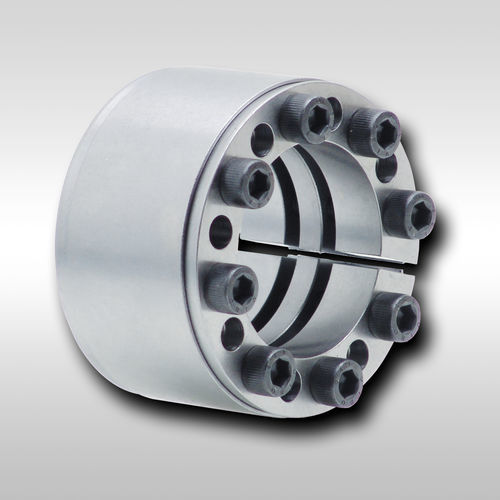

The RLK 404 series Cone Clamping Elements are designed to provide hub to shaft centering and feature high transmissible torque values and a clamping procedure that does not cause any axial displacement between hub and the shaft. These units are intended for use with shaft diameters between 70 mm and 600 mm.
