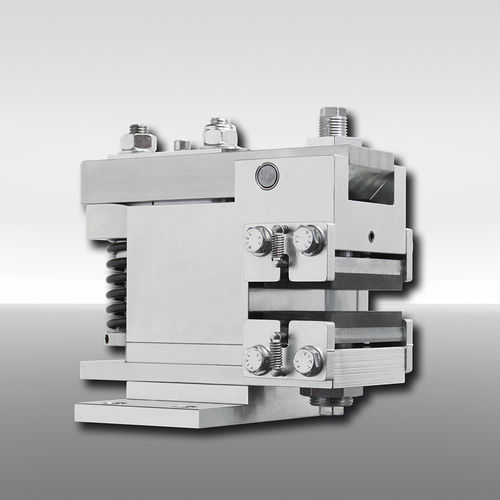

disc brake / electromagnetic / spring activated
EV 024 FEM - EH 024 FEM RINGSPANN

{{requestButtons}}

Characteristics

  • Type:

    disc

  • Operation:

    electromagnetic, spring activated

  • Torque:

    Max.: 1160 Nm (855.57 ft.lb)

    Min.: 320 Nm (236.02 ft.lb)

  • Braking force:

    4000, 5000

Description

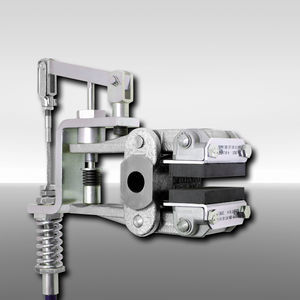

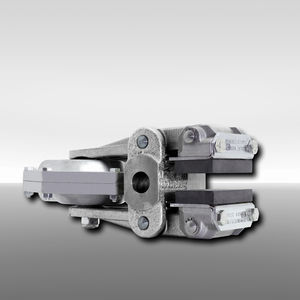

Brake Caliper with electromagnet
Mounting to the machine parallel to the brake disc
Frame size 024
Spring activated
Electromagnetically released
Manual adjustment to accommodate friction block wear
Supply voltage 230 to 415 VAC, adjusted to supply frequency 50 Hz or 60 Hz
Electromagnet mounted in central position
Thickness of brake disc 10 … 16 mm or 18 … 26 mm
