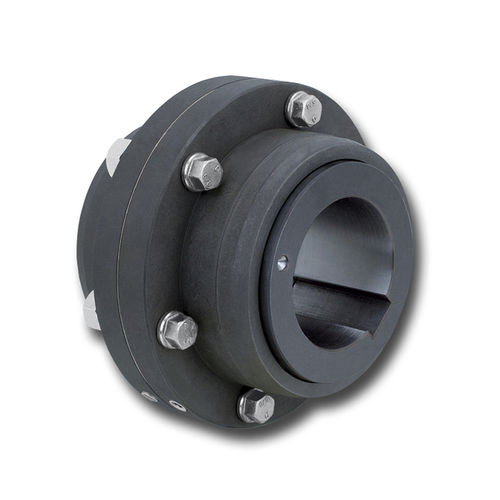

gear coupling / torsionally rigid / for shafts / for pumps
RDZ … DTO Series RINGSPANN

{{requestButtons}}

Characteristics

  • Type:

    torsionally rigid, gear

  • Product applications:

    for shafts, for pumps, fan, for conveyors, blower

  • Other characteristics:

    compact, compensating, high-torque

  • Torque:

    Min.: 1,330 Nm (980.9577 ft.lb)

    Max.: 391,500 Nm (288,755.5814 ft.lb)

  • Rotational speed:

    Min.: 1,450 rpm (9,110.62 rad.min-1)

    Max.: 8,000 rpm (50,265.48 rad.min-1)

Description

Features
- High nominal torques up to 391 500 Nm
- High misalignment capability
- Compensation of axial, radial and angular misalignments
- Double engagement allows smooth torque transmission
- Compact design due to inside turned hubs
- Complies with the AGMA standard (American Gear Manufacturer Association) up to coupling size 0090
- High power to weight ratio

Typical application
- Roll drives in the steel and paper industry
- Pumps
- Conveyors
- Fans and blowers
