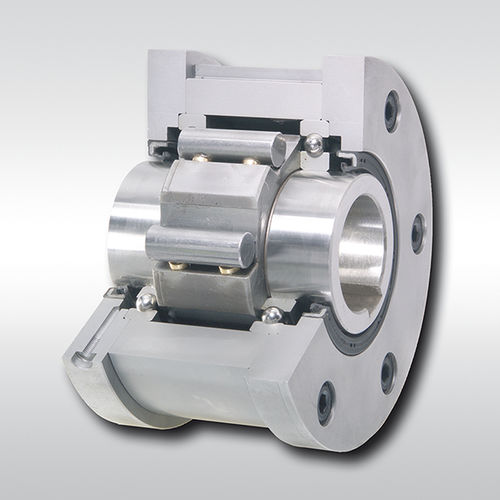

One-way roller clutch / full-face / with internal bearings / indexing
FGRN R A5A6 series RINGSPANN

Characteristics

  • Technology:

    roller

  • Construction:

    full-face, with internal bearings

  • Applications:

    indexing

  • Torque:

    Min.: 55 Nm (40.57 ft.lb)

    Max.: 6800 Nm (5015.42 ft.lb)

  • Diameter:

    Min.: 12 mm

    Max.: 80 mm

  • Rotational speed:

    Min.: 600 rpm (3769.91 rad.min-1)

    Max.: 5400 rpm (33929.2 rad.min-1)

Description

The FGRN Series of Bearing-Supported Complete Freewheel, manufactured by Ringspann, is specifically designed with complete freewheels FGRN R A5A6 which are made as sealed roller freewheels with ball bearings. This bearing is mainly used for key way connection on the outer ring. This device is also configured as oil lubricated to generate efficiently.

Moreover, it can generate in a nominal torque of 6 800 Nm, and has bore of 80 mm.
