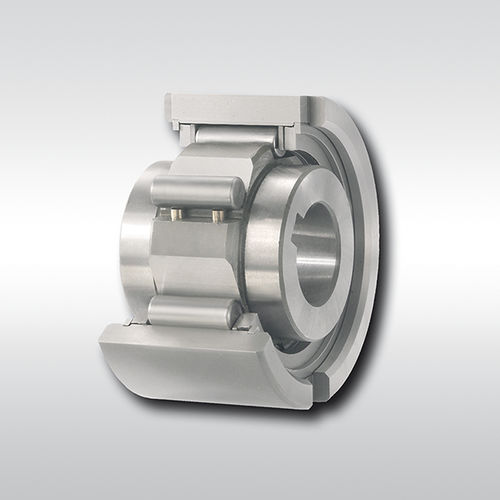

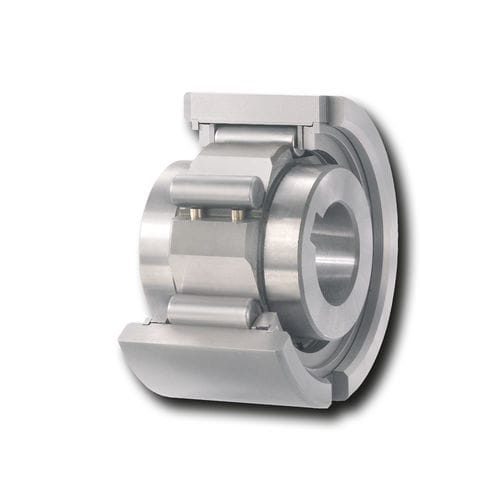

Internal one-way clutch / roller / indexing / without bearing function
FN series RINGSPANN

Characteristics

  • Construction:

    roller

  • Other characteristics:

    indexing, internal, without bearing function, oversteering, sprag

  • Torque:

    Min.: 18 Nm (13.28 ft.lb)

    Max.: 3000 Nm (2212.69 ft.lb)

  • Diameter:

    Min.: 8 mm

    Max.: 60 mm

  • Rotational speed:

    Min.: 800 rpm (5026.55 rad.min-1)

    Max.: 5400 rpm (33929.2 rad.min-1)

Description

Ringspann's FN series is a line of internal freewheels designed for keyway connection on outer rings. It offers an efficient solution with its compact size and space-saving construction.

The unit is mainly used as backstops, overrunning clutches, and indexing freewheels. It features a nominal torque range of 18 Nm to 3 000 Nm. The series comes in different bore sizes that ranges from 8mm to 60mm.
