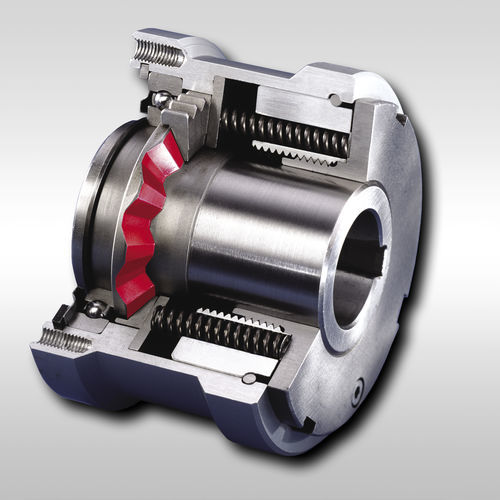

Torque limiter with sprocket wheel
SIKUMAT® SC RINGSPANN

Characteristics

  • Operation:

    with sprocket wheel

  • Torque:

    Min.: 15 Nm (11.06 ft.lb)

    Max.: 335 Nm (247.08 ft.lb)

  • Diameter:

    Min.: 7 mm

    Max.: 45 mm

  • Rotational speed:

    1500 rpm (9424.78 rad.min-1)

Description

When it comes to the disengaging process, this ratcheting SIKUMAT SC unit with screw faces offers good robustness through surface contact. The unit is maintenance free, as it comes enclosed with integral bearing. The limit torque setting is adjusted in accordance with the number of active springs, rather than through spring pressure modification. The SIKUMAT ratchets when reaching the set limit torque. After the overload is eliminated, the unit re-engages automatically. A special proximity switch indicates the overload for the ratcheting unit, therefore either activating another control function or causing the drive to be instantaneously switched off.
