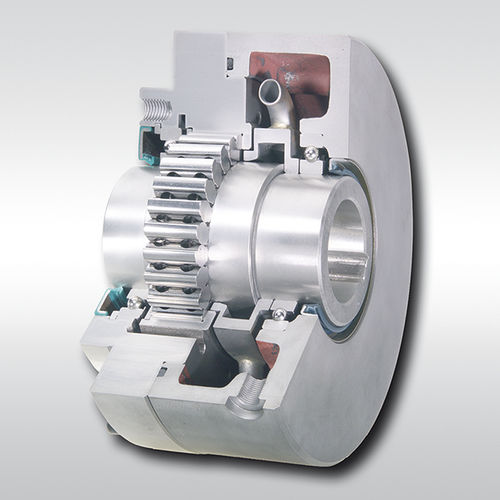

Full-face one-way clutch / with internal bearings / backstop / high-speed
FKh series RINGSPANN

Characteristics

  • Construction:

    full-face, with internal bearings

  • Applications:

    backstop

  • Other characteristics:

    high-speed

  • Torque:

    Min.: 1100 Nm (811.32 ft.lb)

    Max.: 14000 Nm (10325.87 ft.lb)

  • Diameter:

    Min.: 35 mm

    Max.: 95 mm

  • Rotational speed:

    1600 rpm (10053.1 rad.min-1), 1800 rpm (11309.73 rad.min-1), 2000 rpm (12566.37 rad.min-1), 3000 rpm (18849.56 rad.min-1)

Description

The Complete Freewheels FKh are utilized for bolting to the face for multimotor drives and are equipped with a hydrodynamic sprag lift-off. The Complete Freewheels FKh with hydrodynamic sprag lift-off are commonly utilized in situations where an assembly can be operated by two or more motors, turbines, or at a similar high speed.

The Complete Freewheels FKh come ready for installation. They are pre-filled with oil and include sealed sprag freewheels with ball bearings. They are used as overrunning clutches in cases where the speeds in driving operation or freewheeling operation either match or are practically as high. They have bores up to 95 mm and nominal torques to 14,000 Nm.
