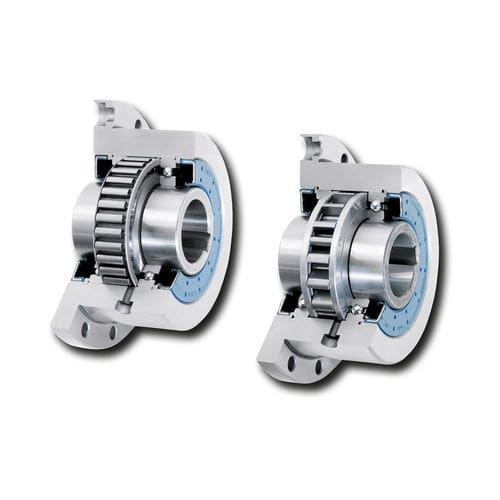

Full-face one-way clutch / with internal bearings / backstop / indexing
FBF series RINGSPANN

Characteristics

  • Construction:

    full-face, with internal bearings

  • Applications:

    backstop, indexing

  • Torque:

    Min.: 45 Nm (33.19 ft.lb)

    Max.: 160000 Nm (118009.94 ft.lb)

  • Diameter:

    Min.: 12 mm

    Max.: 300 mm

  • Rotational speed:

    Min.: 400 rpm (2513.27 rad.min-1)

    Max.: 5500 rpm (34557.52 rad.min-1)

Description

with mounting flange
with sprags, available in four types

Features

Complete Freewheels FBF with mounting flange are sealed sprag freewheels with ball ­bearings. They are supplied oil-filled and ready for installation.
In addition to the standard type, three other types are available for extended service life.

Nominal torques up to 160 000 Nm.
Bores up to 300 mm. A multitude of ­standard­ized bore diameters are available with short delivery times.

Application as
- Backstop
- Overrunning Clutch
- Indexing Freewheel
