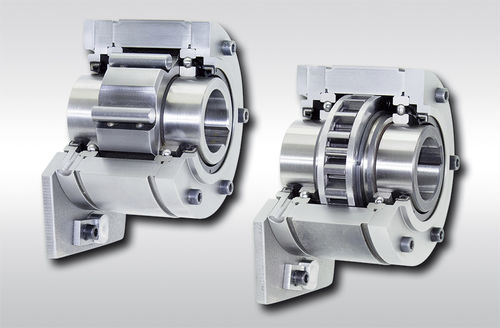

One-way roller clutch / full-face / with internal bearings / backstop
BC series RINGSPANN

Characteristics

  • Technology:

    roller

  • Construction:

    full-face, with internal bearings

  • Applications:

    backstop, indexing

  • Torque:

    Min.: 150 Nm (110.63 ft.lb)

    Max.: 57500 Nm (42409.82 ft.lb)

  • Diameter:

    Min.: 15 mm

    Max.: 150 mm

  • Rotational speed:

    Min.: 250 rpm (1570.8 rad.min-1)

    Max.: 1750 rpm (10995.57 rad.min-1)

Description

with lever arm
with sprag lift-off X

Features

Complete Freewheels BC with lever arm are sealed freewheels with ball bearings.
Freewheels BC are supplied oil-filled and ready for installation. They are arranged on through shafts or shaft ends.
Besides the standard type, the type with sprag lift-off X is available for wearfree freewheeling operation at high speed rotating inner ring.

Nominal torques up to 57 500 Nm.
Bores up to 150 mm. A multitude of ­standard­ized bore diameters are available with short delivery times.

Application as
- Backstop
