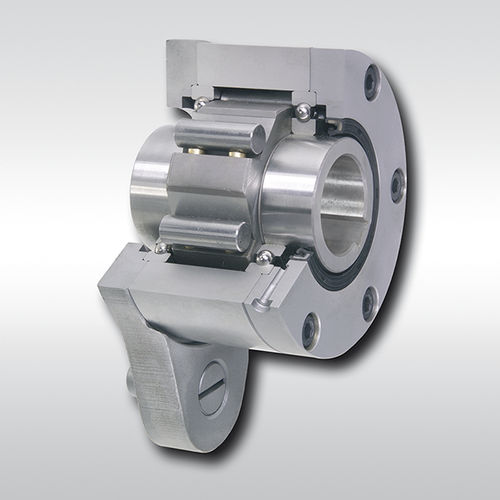

One-way roller clutch / full-face / with internal bearings / backstop
FGR … R A2A3 series RINGSPANN

Characteristics

  • Technology:

    roller

  • Construction:

    full-face, with internal bearings

  • Applications:

    backstop

  • Torque:

    Min.: 55 Nm (40.57 ft.lb)

    Max.: 68000 Nm (50154.23 ft.lb)

  • Diameter:

    Min.: 12 mm

    Max.: 150 mm

  • Rotational speed:

    Min.: 200 rpm (1256.64 rad.min-1)

    Max.: 2500 rpm (15707.96 rad.min-1)

Description

with lever arm
with rollers

Features

Complete Freewheel FGR R A2A3 with lever arm are sealed roller freewheels with ball bearings. They are oil lubricated.
The freewheels FGR R A2A3 are arranged on through shafts or shaft ends.

Nominal torques up to 68 000 Nm.
Bores up to 150 mm.

Application as
- Backstop for applications with low to medium speeds in freewheeling operation.
