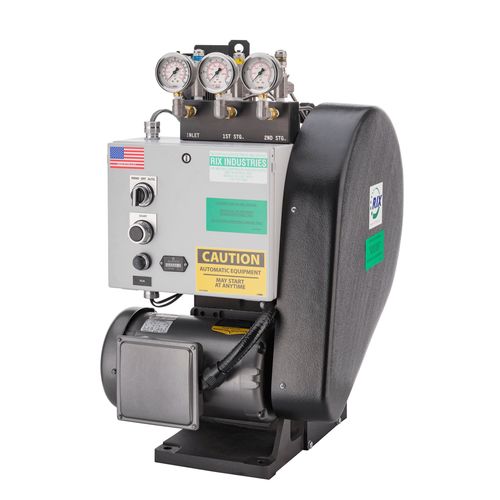

Piston compressor 2PS

air and dry gasfor oxygenelectrically-powered

RIX Industries’ 2PS series compressors are designed for continuous 24/7 operation in the most demanding industrial and medical applications. These compressors are engineered for safe, reliable delivery of high pressure oxygen as well as other clean, dry gases up to 2200 psig (152 barg), or optionally up to 3000 psig (207 barg). The 2PS is the industry’s preferred choice for high pressure cylinder filling applications and can supply up to twelve 240 cu. ft. 2200 psi cylinders in a 24 hour period. The 2PS series uses two oil-free, single-acting cylinders on a vertically designed crankcase. Heat exchangers, crankcases, and compression cylinders are air cooled for ease of service and installation. A free-floating second stage piston design allows for easy removal and replacement of both piston and ring without removal of cylinder or piston rod. The ring life of the high pressure stage, at 2200 psig, has proven to be more than 2000 hours; first stage service life is considerably longer. Gas Type: - Oxygen, Air, Max Pressure: - 2,200 PSIG Max Flow Rate: - 120 SCFH Cooling: - Air
