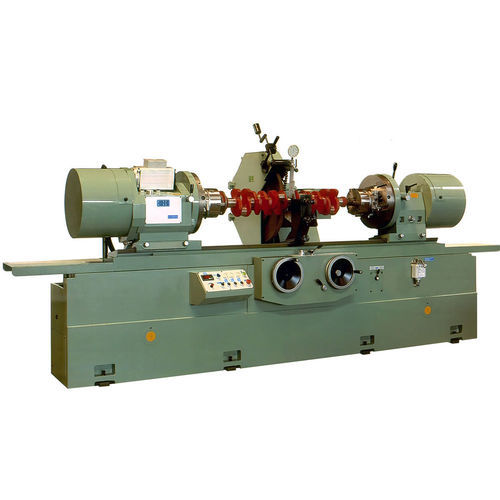

Crankshaft grinding machine REX 1800
conventionalhydraulic

crankshaft grinding machine
crankshaft grinding machine
crankshaft grinding machine
Add to favorites
Compare this product


Characteristics

Applications
for crankshafts
Control type
conventional
Other characteristics
hydraulic
Spindle speed

Max.: 940 rpm
(5,906 rad.min-1)

Min.: 770 rpm
(4,838 rad.min-1)

Distance between centers

1,800 mm
(71 in)

Description

Distance between chucks - mm. - 1750 - Height of centers over table - mm. - 300 - 350 Swing over table - mm. - 600 - 700 Max. offset of centers - mm. - 125 - 150 Max. grinding diameter - mm. - 180 - 200 Fast hydraulic wheelhead traverse - mm. - 130 - 170 Hand micrometric wheelhead feed - mm. - 170 - 200 Hand micrometric wheelhead feed, graduation - mm. - 0,005 - Wheelhead feed per reverse - mm. - 1 - Hand micrometric worktable traverse per reverse - mm. - 8 - Fast hydraulic worktable traverse - m. / min. - 3 - Max. grinding wheel diameter - mm. - 760 - 815 Min.-Max. width of grinding wheel - mm. - 19-50 - 19-60 Diameter of chucks - mm. - 200 - 230 Chucks holding diameter - mm. - 250 - 290 Rest capacity - mm. - 30 – 120 - 30 -160 Workhead spindle speeds - r.p.m. - 0 – 60 Max. weight on centers - Kg. - 350 - 600 Max. weight on rests - Kg. - 800 - 1500 Lenght x width x height - m. - 4.5 x 1.65 x 1.7 - 4.5 x 1.65 x 1.8 Approx. net weight - Kg. - 4600 - 5000
