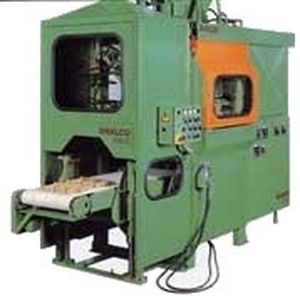

Cold-box core making machine
15 x 18 ", 30 lbs | 315 series
Roberts Sinto
Fast Production Cycle, Rugged Construction, Easy Maintenance, Completely Automatic, Proven Performance
Controls include single, automatic and repeat cycles. Average production cycle time is a fast 12 to 15 seconds, with finished cores deposited upon an automatically indexing conveyor belt.
Shalco 315 Series machines are available in three models, with core box sizes ranging from 10" x 18" x 3" (254 x 457 x 76? mm) for the model 315-A to 15" x 18" x 6" (381 x 457 x 152 mm) for Model 315-E. Maximum blown core weight is 10 lbs. (4.5 kg) for the Model A, 30 lbs. (13.6 kg) for Models C & E. Model A machines have a maximum tooling weight (movable half) of 450 lbs. (204 kg), while Models C & E can handle core boxes up to 800 lbs. (363 kg). All models have a 5' (1.52 m) soft belt conveyor on which the finished cores/molds are automatically placed as they are ejected from the tooling.
The ruggedly constructed 315 Series machines feature rigid, all welded tubular steel frames, and are supplied fully equipped with all cylinders, valves and controls ready for installation and hook-up. Controls are relay-operated solenoid valves or programmable. All production sequences are timed automatically, with sand fill and gassing cycles precisely metered for consistent quality and control, cycle after cycle.
Standard Equipment:
- Automatic controls
- Regulator for control of blow pressure
- Filter & lubricator for air system
- Spray gun
- Movable and stationary core box ejector system
- Single combustion system (hot process)
- Indicating temperature controls (hot process)
- Vibratory sand feed hopper
