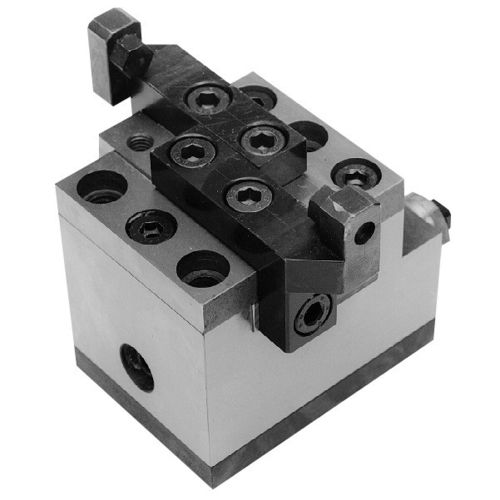

Hydraulic clamp H4.307 double-actingcompact
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Other characteristics
- double-acting, compact
- Clamping force
Max.: 8.8 kN
Min.: 2.8 kN
Description
Parallel slide centring element
This element is used in clamping systems in order to centre workpieces with small complicated contours and ribbing serving as a base for the definition of tolerances.
double acting
max. operating pressure 500 bar
clamping force / jaw: 2.8 - 8.8 kN
stroke / jaw: 6 mm
piston Ø: 12 - 20 mm
centering repeatability: ±0.02 mm
