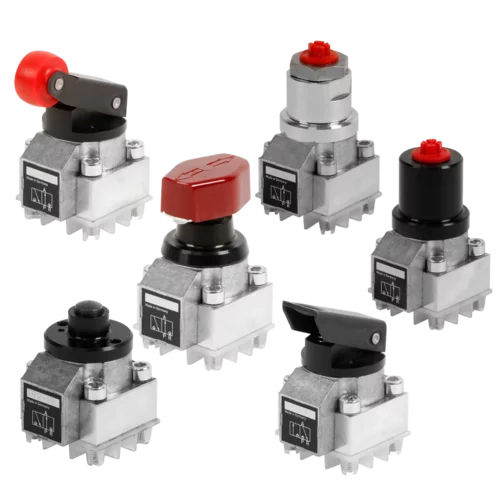

Poppet hydraulic directional control valve C2.320manual3/2-way
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Actuating method
- manual
- Ports/positions
- 3/2-way
- Operating pressure
500 bar
(7,252 psi)- Flow rate
8 l/min
(2 us gal/min)
Description
C2.320 Directional control valves ND 4
C2.320 Directional control valves ND 4
manually operated
max. operating pressure 500 bar
port size: G 1/4
adm. flow rate: 8 l/min
hydraulic oil: HLP 22
angle of rotation: 90º
operating torque: 0.63 Nm
