- Römheld GmbH Friedrichshütte
Hollow-plunger cylinder 2.1300hydraulicsingle-actingclamping
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Configuration
- single-acting
- Applications
- clamping
- Other characteristics
- hollow-plunger
- Stroke
12 mm, 15 mm
(0.472 in, 0.591 in)- Pressure
Max.: 400 bar
(5,801.5 psi)Min.: 0 bar
(0 psi)- Force
Max.: 137.2 kN
Min.: 34.8 kN
Description

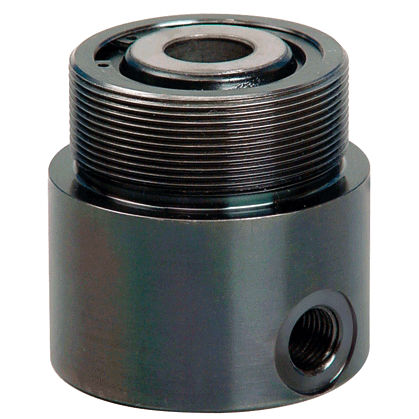

2.1300 Hollow-piston cylinders
2.1300 Hollow-piston cylinders
single acting
without spring return
max. operating pressure 400 bar
clamping force: 34.8 .. 137.2 kN
clamping stroke: 12 .. 15 mm
Piston restoring force: 0.18 .. 0.7 kN
piston area: 8.7 .. 34.3 cm²
