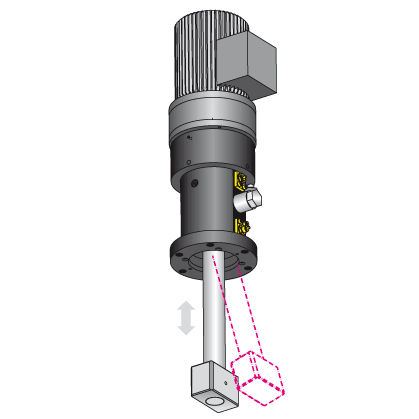

Swing clamp 5.2650
electro-mechanical

swing clamp
swing clamp
Add to favorites
Compare this product


Characteristics

Type
electro-mechanical
Other characteristics
swing
Clamping force

70 kN, 120 kN, 160 kN

Description

5.2650 Swing clamps 5.2650 Swing clamps electro-mechanical with position monitoring clamping force 70, 120 and 160 kN clamping stroke up to 12 mm max. static force: 110 .. 300 kN clamping speed: 3.8 .. 4.1 mm/s motor voltage: 400 V / 50 Hz motor rating: 0.55 .. 1.1 kW clamping stroke: 11 .. 12 mm swing stroke: 8 .. 13 mm
