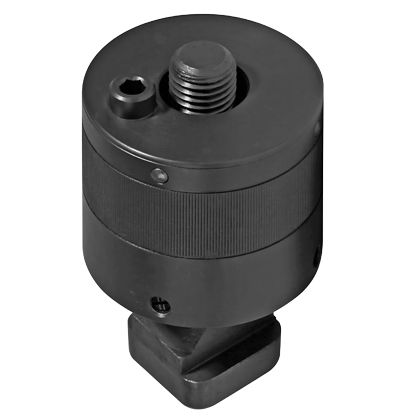

Mechanical clamping nut 6.2274cylindricalmetal
Add to favorites
Compare this product
Characteristics
- Types
- cylindrical
- Material
- metal
- Other characteristics
- mechanical clamping
- Nominal diameter
Min.: 12 mm
(0.47 in)Max.: 36 mm
(1.42 in)- Height
58 mm, 74 mm, 78 mm
(2.283 in, 2.913 in, 3.071 in)
Description
6.2274 Clamping nut, mechanical
6.2274 Clamping nut, mechanical
with through-hole thread
without clamping force display
T-slot DIN 650: 14 .. 42 mm
clamping force: 60 .. 180 kN
max. tightening torque: 30 .. 110 Nm
