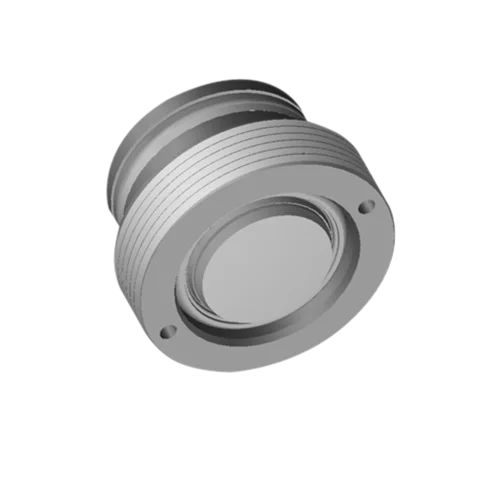

Threaded body cylinder B1.464hydraulicpistonspring-return
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- spring-return
- Applications
- clamping
- Other characteristics
- threaded body, short-stroke
- Stroke
4 mm, 8 mm
(0.157 in, 0.315 in)- Pressure
Max.: 500 bar
(7,251.9 psi)Min.: 0 bar
(0 psi)- Force
Max.: 40.2 kN
Min.: 15.7 kN
Description
B1.464 Threaded-body cylinders
B1.464 Threaded-body cylinders
short stroke
single acting with spring return
max. operating pressure 500 bar
plunger design
piston diameter: 20 .. 32 mm
stroke: 4 and 8 mm
max. push force: 15.7 .. 40.2 kN
external thread: M38 .. M56
