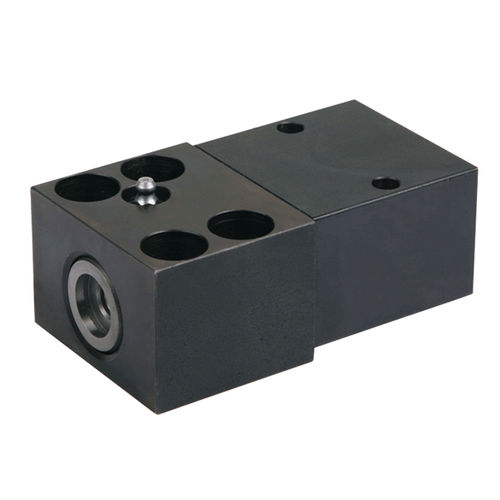

Cylinder with guide B1.738hydraulicdouble-actingclamping
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Configuration
- double-acting
- Applications
- clamping
- Other characteristics
- block, with guide
- Stroke
Max.: 63 mm
(2.48 in)Min.: 20 mm
(0.787 in)- Pressure
350 bar, 500 bar
(5,076.3 psi, 7,251.9 psi)- Force
Max.: 156 kN
Min.: 17.1 kN
Description
B1.738 Block cylinders with guide housing
B1.738 Block cylinders with guide housing
max. operating pressure extending 500 bar for steel block cylinders
350 bar for aluminium block cylinders retracting 350 bar for all Versions
steel or aluminium housing
piston diameter: 25 .. 63 mm
plunger diameter: 30 .. 70 mm
stroke: 20 .. 63 mm
max. push force: 17.1 .. 156 kN
