Pull handle RP
transportpolyamideU-shaped

pull handle
pull handle
Add to favorites
Compare this product


Characteristics

Type
pull
Applications
transport
Material
polyamide
Shape
U-shaped
Other characteristics
rugged
Size

Min.: 204 mm
(8.03 in)

Max.: 624 mm
(24.57 in)

Description

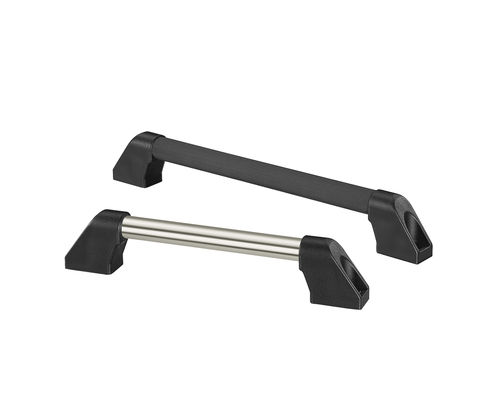

The handle shanks of the Handle Series RP are constructed from high-duty polyamide with a reinforced glass ball. They have a fine structure, are available in a black color and have a semi-matt finish, being similar to RAL 9005. The connecting tubes are made from aluminum AlMgSi 0.5. Four clamping bars inside the pipe connection are supplied for the handle shank RP. The bars will peel and offer a firm fitting when the round tube has been pressed in. Version A features a connecting tube which is ground and anodized in a natural color. Version B is a connecting tube with a grooved plastic cover. The Handle Series RP is supplied with galvanized washers DIN 125, nuts to DIN 934 and black galvanized, flat-headed screws with a hexagon socket M 8 x 20 DIN 7991. All required handle lengths are available.
